Sample the environment

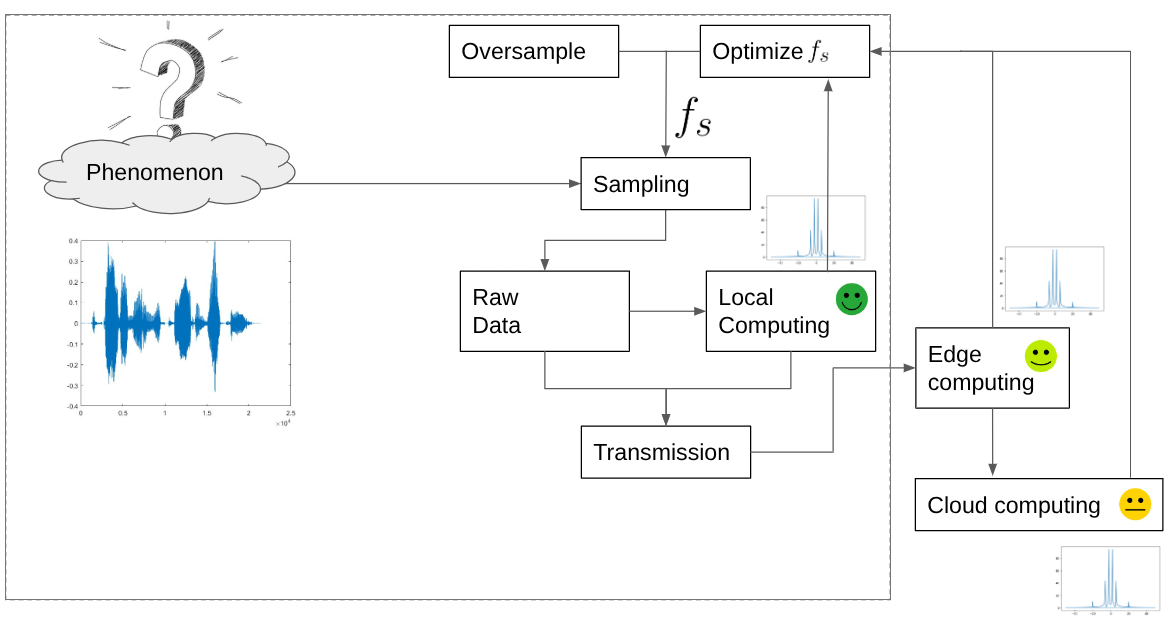

Usually IoT applications need to observe a physical phenomenon. This is done by sampling.

Sampling? How often: Fast Fourier Transform (FFT)

Colab Notebook on FFT

A simple experimental setup

A virtual signal is a practical approach to generate arbitrary signals using one EPS32 as the signal generator, and the other as the sampler.

The two ESP32 are connected as in the following picture

The node on the left works as a virtual signal, it generates a signal using the DAC on PIN 25. The node on the right sample the generated signal by the ADC on pin 34

ESP32 A (Sender)	Connection Type	ESP32 B (Receiver)	Purpose
GPIO25 (DAC1)	\(\rightarrow\)	GPIO34 (ADC1)	Signal Path
GND	\(\longleftrightarrow\)	GND	Common Reference
USB Power		USB Power	Power Supply

ESP32 A: The Generator (Sender)

This code uses a pre-calculated lookup table (LUT) to store sine values. This is much more efficient than calculating sin() on the fly, allowing for a smoother signal.

// ESP32 SENDER CODE
#include <Arduino.h>

#define DAC_PIN 25 // Uses DAC Channel 1
const int tableSize = 256;
uint8_t sineTable[tableSize];

void setup() {
  // Generate a sine lookup table (0 to 255)
  // We scale it slightly (20-230) to stay in the DAC's linear range
  for (int i = 0; i < tableSize; i++) {
    sineTable[i] = (uint8_t)(127 + 100 * sin(2 * PI * i / tableSize));
  }
}

void loop() {
  for (int i = 0; i < tableSize; i++) {
    dacWrite(DAC_PIN, sineTable[i]);
    delayMicroseconds(100); // Adjust this to change frequency
  }
}

The frequency is calculated by how long it takes to step through all 256 points of the lookup table.

• Delay per step: 100 microseconds (\(\mu s\))
• Total steps: 256
• Time for 1 full wave (\(T\)): \(256 \times 100 \mu s = 25,600 \mu s\) (or 0.0256 seconds)

To find the frequency (\(f\)), we use:

\[f = \frac{1}{T} = \frac{1}{0.0256} \approx 39 \text{ Hz}\]

Note: The actual frequency will be slightly lower (closer to 37-38 Hz) because the dacWrite() function and the for loop overhead add a few extra microseconds per step.

---

ESP32 B: The Receiver (Sampler)

This code reads the signal and prints it to the Serial Plotter. Note the use of analogReadAttenuation, which sets the voltage range to approximately 0V–3.1V to better match the DAC output.

// ESP32 RECEIVER CODE
#include <Arduino.h>

#define ADC_PIN 34 // ADC1_CH6

void setup() {
  Serial.begin(115200);
  // Set attenuation to 11dB (allows 0V - 3.1V range)
  analogSetAttenuation(ADC_11db);
}

void loop() {
  int rawValue = analogRead(ADC_PIN);

  // Print to Serial Plotter
  // We include a "Floor" and "Ceiling" to keep the graph stable
  Serial.print("Min:0,Max:4095,Signal:");
  Serial.println(rawValue);

  delayMicroseconds(500); // Sample rate control
}

The ESP32's analogRead() takes about 10µs to 20µs. If you find the wave looks "steppy" or jagged, it’s usually due to electrical noise or the sampling interval. If you want to go faster (into the kHz range), the dacWrite method used here will eventually hit a bottleneck.

The sampling frequency (\(f_s\)) is how many times per second the ADC "looks" at the incoming voltage.

• Delay per sample: 500 microseconds (\(\mu s\))
• ADC conversion time: approx. 10-20 microseconds
• Serial print time: approx. 50-100 microseconds (at 115200 baud)

Total time per sample is roughly 600 \(\mu s\).

\[f_s = \frac{1}{600 \times 10^{-6}} \approx 1,666 \text{ Hz} \text{ (or 1.6 kHz)}\]

---

Is sampling frequency sufficient?

According to the Nyquist-Shannon Sampling Theorem, your sampling frequency must be at least twice the signal frequency to avoid "aliasing" (where the signal looks like a completely different wave).

• Signal: ~39 Hz
• Sampler: ~1,666 Hz
• Oversampling Ratio: ~42x

A 42x oversampling ratio means you will get a very high-fidelity reconstruction of the sine wave on your Serial Plotter.

The Sampler in FreeRTOS

Two tasks, one samples the environment the other perform a computation on the samples

#include <Arduino.h>

// Configuration
#define ADC_PIN 34
#define WINDOW_SIZE 20  // Number of samples to average
#define QUEUE_LEN 50    // Size of the data buffer

// Handle for the Queue
QueueHandle_t adcQueue;

// Task 1: High-frequency sampling
void taskSampleADC(void *pvParameters) {
    for (;;) {
        int rawValue = analogRead(ADC_PIN);

        // Send sample to queue (don't block if full to keep timing consistent)
        xQueueSend(adcQueue, &rawValue, 0);

        // Sampling at ~2kHz (500us)
        vTaskDelay(pdMS_TO_TICKS(1));
        // Note: For microsecond precision, use micros() timing or a hardware timer
    }
}

// Task 2: Computation and Reporting
void taskAverageADC(void *pvParameters) {
    int receivedValue;
    long sum = 0;
    int count = 0;

    for (;;) {
        // Wait for data from the queue (block indefinitely until data arrives)
        if (xQueueReceive(adcQueue, &receivedValue, portMAX_DELAY)) {
            sum += receivedValue;
            count++;

            // Once we have enough samples, calculate and print
            if (count >= WINDOW_SIZE) {
                float average = (float)sum / WINDOW_SIZE;

                Serial.print("Min:0,Max:4095,AvgSignal:");
                Serial.println(average);

                // Reset for next window
                sum = 0;
                count = 0;
            }
        }
    }
}

void setup() {
    Serial.begin(115200);
    analogSetAttenuation(ADC_11db);

    // Create the queue to hold 'int' types
    adcQueue = xQueueCreate(QUEUE_LEN, sizeof(int));

    if (adcQueue != NULL) {
        // Create Producer Task (Higher priority)
        xTaskCreate(taskSampleADC, "SampleTask", 2048, NULL, 2, NULL);

        // Create Consumer Task (Lower priority)
        xTaskCreate(taskAverageADC, "AverageTask", 2048, NULL, 1, NULL);
    }
}

void loop() {
    // FreeRTOS uses the tasks; loop() stays empty or handles low-priority UI
    vTaskDelete(NULL);
}

---

How to go faster

In previous sections we achieve Hz frequencies, If you want to reach Kilohertz signal frequencies, the delayMicroseconds() approach becomes unreliable because the "background noise" of the code (the time it takes to process the loop) becomes a large percentage of the total time. That is when we switch to I2S (Inter-IC Sound), which uses a hardware clock to "push" data to the DAC or "pull" it from the ADC at exact intervals, like a metronome.

Instead of the CPU manually toggling the DAC or reading the ADC in a loop, the I2S hardware uses a dedicated clock to stream data in the background. This allows for frequencies in the kilohertz (kHz) range with perfect timing.

On the ESP32, the I2S peripheral can be "routed" directly to the internal DAC and ADC.

---

The High-Speed Generator (Sender)

This code configures I2S to "pump" a sine wave out of the DAC at a high sample rate. Note that for I2S to DAC, we use a 16-bit buffer even though the DAC is 8-bit (the hardware expects it this way).

#include "driver/i2s.h"
#include <math.h>

#define SAMPLE_RATE     44100 // 44.1 kHz (CD Quality)
#define SINE_FREQ       440.0 // Standard A4 note
#define I2S_NUM         I2S_NUM_0

void setup() {
  i2s_config_t i2s_config = {
    .mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_TX | I2S_MODE_DAC_BUILT_IN),
    .sample_rate = SAMPLE_RATE,
    .bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,
    .channel_format = I2S_CHANNEL_FMT_ONLY_RIGHT,
    .communication_format = I2S_COMM_FORMAT_STAND_I2S,
    .intr_alloc_flags = 0,
    .dma_buf_count = 8,
    .dma_buf_len = 64,
    .use_apll = false
  };

  i2s_driver_install(I2S_NUM, &i2s_config, 0, NULL);
  i2s_set_dac_mode(I2S_DAC_CHANNEL_BOTH_EN); // Enables GPIO25 and 26
}

void loop() {
  static float phase = 0;
  uint16_t sample;
  size_t bytes_written;

  // Generate 1 sample of sine wave
  float val = sin(phase);
  sample = (uint16_t)((val + 1.0) * 127); // Scale -1.0..1.0 to 0..254
  sample <<= 8; // I2S DAC expects high byte

  i2s_write(I2S_NUM, &sample, sizeof(sample), &bytes_written, portMAX_DELAY);

  phase += 2 * PI * SINE_FREQ / SAMPLE_RATE;
  if (phase >= 2 * PI) phase -= 2 * PI;
}

---

The High-Speed Sampler (Receiver)

The receiver uses I2S to read from the ADC. This is much faster than analogRead().

#include "driver/i2s.h"

#define SAMPLE_RATE 44100
#define I2S_NUM     I2S_NUM_0

void setup() {
  Serial.begin(115200);

  i2s_config_t i2s_config = {
    .mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX | I2S_MODE_ADC_BUILT_IN),
    .sample_rate = SAMPLE_RATE,
    .bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,
    .channel_format = I2S_CHANNEL_FMT_ONLY_RIGHT,
    .communication_format = I2S_COMM_FORMAT_STAND_I2S,
    .intr_alloc_flags = 0,
    .dma_buf_count = 8,
    .dma_buf_len = 64,
    .use_apll = false
  };

  i2s_driver_install(I2S_NUM, &i2s_config, 0, NULL);
  i2s_set_adc_mode(ADC_UNIT_1, ADC1_CHANNEL_6); // GPIO34
  i2s_adc_enable(I2S_NUM);
}

void loop() {
  uint16_t buffer[64];
  size_t bytes_read;

  // Read a block of samples from the DMA buffer
  i2s_read(I2S_NUM, &buffer, sizeof(buffer), &bytes_read, portMAX_DELAY);

  // Print just the first sample of each block to Serial Plotter (to avoid flooding)
  Serial.println(buffer[0] & 0x0FFF); // Mask 12 bits for ADC
}

---

Why this is better

1. DMA (Direct Memory Access): The I2S hardware uses DMA. This means it writes directly to a chunk of memory (the buffer) without the CPU having to intervene for every single bit.

2. No Jitter: In your previous code, if the CPU was busy doing a background Wi-Fi task, the sine wave would "hiccup." With I2S, the clock is generated by hardware, so the timing is rock-solid.

3. Efficiency: You can now generate or sample audio at 44,100 Hz (or even higher) while the CPU is free to do other things, like processing a FFT (Fast Fourier Transform).

One Final Caveat

At 44.1 kHz, the Serial Plotter will struggle to keep up if you print every single point. That's why the receiver code above only prints one sample from every buffer "chunk." If you want to see the full wave at high speed, you'd usually store a large buffer and then "dump" it to the serial port all at once.

FFT (Fast Fourier Transform)

Performing an FFT (Fast Fourier Transform) is where the magic happens. It allows the Receiver ESP32 to "look" at the incoming sine wave and calculate its frequency mathematically, rather than just drawing a line on a screen.

To do this, we’ll use the arduinoFFT library. You will need to install it via the Arduino Library Manager (Sketch > Include Library > Manage Libraries... and search for "arduinoFFT").

The Receiver FFT Code (ESP32 B)

This code collects a batch of samples (usually a power of 2, like 128 or 256) and converts that "Time Domain" data into "Frequency Domain" data.

#include "driver/i2s.h"
#include "arduinoFFT.h"

#define SAMPLE_RATE 44100
#define SAMPLES 256             // Must be a power of 2
#define SAMPLING_FREQ 44100     // Match the Sender

double vReal[SAMPLES];
double vImag[SAMPLES];
ArduinoFFT<double> FFT = ArduinoFFT<double>(vReal, vImag, SAMPLES, SAMPLING_FREQ);

void setup() {
  Serial.begin(115200);

  // I2S Configuration (Same as previous Receiver code)
  i2s_config_t i2s_config = {
    .mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX | I2S_MODE_ADC_BUILT_IN),
    .sample_rate = SAMPLE_RATE,
    .bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,
    .channel_format = I2S_CHANNEL_FMT_ONLY_RIGHT,
    .communication_format = I2S_COMM_FORMAT_STAND_I2S,
    .dma_buf_count = 8,
    .dma_buf_len = 64,
    .use_apll = false
  };

  i2s_driver_install(I2S_NUM_0, &i2s_config, 0, NULL);
  i2s_set_adc_mode(ADC_UNIT_1, ADC1_CHANNEL_6); // GPIO34
  i2s_adc_enable(I2S_NUM_0);
}

void loop() {
  // 1. Collect SAMPLES from I2S
  for (int i = 0; i < SAMPLES; i++) {
    uint16_t sample;
    size_t bytes_read;
    i2s_read(I2S_NUM_0, &sample, sizeof(sample), &bytes_read, portMAX_DELAY);
    vReal[i] = (double)(sample & 0x0FFF); // Raw ADC value
    vImag[i] = 0.0;                       // Imaginary part is 0 for real signals
  }

  // 2. Process FFT
  FFT.windowing(FFT_WIN_TYP_HAMMING, FFT_FORWARD); // Smooth the data
  FFT.compute(FFT_FORWARD);
  FFT.complexToMagnitude();

  // 3. Find the Peak Frequency
  double peak = FFT.majorPeak();

  // 4. Output to Serial Plotter
  // This will show a spike at the frequency of your sine wave
  for (int i = 2; i < (SAMPLES / 2); i++) { // Skip DC offset at index 0-1
    Serial.println(vReal[i]);
  }

  Serial.print("Detected Peak: ");
  Serial.print(peak);
  Serial.println(" Hz");

  delay(500); // Pause so we can read the text
}

---

How to Interpret the Results

When you open the Serial Plotter, you will no longer see a "moving" wave. Instead, you will see a Spectrum:

• The X-axis represents Frequency (from 0 Hz to \(Sampling Rate / 2\)).

• The Y-axis represents Magnitude (how "strong" that frequency is).

• If your Sender is sending a 440 Hz tone, you will see a sharp vertical spike at the 440 Hz mark on the graph.

Why use a "Window" (Hamming)?

In the code, you'll see FFT_WIN_TYP_HAMMING. If your sample starts or ends in the middle of a wave cycle, it creates "spectral leakage" (noise in the frequency graph). The Windowing function fades the beginning and end of your sample buffer to zero to make the math cleaner and the peak sharper.

---

Other experiments

1. Change the Sender Frequency: Change SINE_FREQ to 1000.0 and watch the peak move to the right on the receiver's plot.
2. Add Noise: Try touching the signal wire with your finger. You'll see the "noise floor" (the messy small bumps at the bottom of the graph) jump up.
3. Square Wave: Change the Sender to output a square wave instead of a sine wave. In the FFT, you will see the fundamental frequency plus a series of "harmonics" (smaller peaks at 3x, 5x, and 7x the frequency).

A possible alternative using the PC

ref

python3 -m pip install sounddevice

# Use the sounddevice module
# http://python-sounddevice.readthedocs.io/en/0.3.10/

import numpy as np
import sounddevice as sd
import time

# Samples per second
sps = 44100

# Frequency / pitch
freq_hz = 2

# Duration
duration_s = 5.0

# Attenuation so the sound is reasonable
atten = 1.0 # 0.3

# NumpPy magic to calculate the waveform
each_sample_number = np.arange(duration_s * sps)
waveform = np.sin(2 * np.pi * each_sample_number * freq_hz / sps)
waveform_quiet = waveform * atten

# Play the waveform out the speakers
sd.play(waveform_quiet, sps)
time.sleep(duration_s)
sd.stop()

Online Tone Generator
